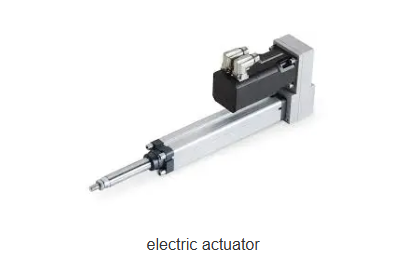

An electric actuator is a device that converts electrical energy into mechanical motion to control or move a system. These actuators are widely used in industrial automation, robotics, HVAC systems, automotive applications, and many other fields where precise movement is required. Unlike pneumatic or hydraulic actuators, which rely on fluid pressure, electric actuators use electric motors to generate motion, offering greater precision, efficiency, and control.
Electric actuators are preferred in applications where clean, quiet, and energy-efficient operation is necessary. They can be designed for linear or rotary motion and are available in various sizes and force capacities to suit different industrial needs.
Electric actuators operate by using an electric motor (typically DC, AC, or stepper motors) to drive a mechanical system. The motor's rotational motion is converted into linear or rotary movement through different mechanisms such as lead screws, ball screws, or gear systems.
Key Components of an Electric Actuator:
Electric Motor – Provides the rotational force.
Lead Screw/Ball Screw – Converts rotary motion into linear motion.
Gearbox – Adjusts speed and torque output.
Position Sensor – Provides feedback for precise control (e.g., potentiometer or encoder).
Limit Switches – Prevent over-travel and damage.
Control Unit – Manages input signals and motor operation.
When an electrical signal is sent to the actuator, the motor rotates, driving the screw or gear mechanism. The linear or rotary output is then used to move valves, gates, robotic arms, or other mechanical components.
Electric actuators can be categorized based on their motion type and application:
1. Linear Electric Actuators
These produce straight-line motion and are commonly used in applications like:
Industrial machinery (presses, lifts)
Medical devices (hospital beds, surgical robots)
Automotive systems (seat adjustments, throttle control)
2. Rotary Electric Actuators
These produce rotational movement and are used in:
Valve actuation (ball valves, butterfly valves)
Robotics (joint movements)
Aerospace (flight control surfaces)
3. Multi-Turn Actuators
Used for applications requiring multiple rotations, such as large valve controls in pipelines.
4. Quarter-Turn Actuators
Provide 90-degree rotation, ideal for butterfly valves and dampers.
5. Servo Actuators
High-precision actuators with feedback control, used in robotics and CNC machines.
Advantages of Electric Actuators
Precision and Accuracy – Electric actuators offer exact positioning, often with feedback systems (encoders) for closed-loop control.
Energy Efficiency – They consume power only when moving, unlike pneumatic systems that continuously use air pressure.
Clean Operation – No risk of oil or air leaks, making them suitable for food, pharmaceutical, and semiconductor industries.
Quiet Performance – Electric motors operate with minimal noise compared to hydraulic systems.
Easy Integration with Control Systems – Can be connected to PLCs, IoT systems, and smart automation networks.
Low Maintenance – Fewer moving parts and no fluid-related wear.
Disadvantages of Electric Actuators
Higher Initial Cost – More expensive than pneumatic actuators.
Limited Force/Speed in Some Models – High-force applications may require hydraulic alternatives.
Heat Generation – Continuous operation can lead to overheating.
Complexity in Hazardous Environments – Requires explosion-proof designs for flammable areas.
Electric actuators are used across various industries:
1. Industrial Automation
Assembly lines
Packaging machines
Conveyor systems
2. Oil & Gas
Pipeline valve control
Drilling equipment
3. Automotive
Electric car battery systems
Automated braking systems
4. Aerospace
Flight control surfaces (ailerons, flaps)
Landing gear mechanisms
5. Medical
Surgical robots
Adjustable hospital beds
6. HVAC Systems
Damper control
Ventilation adjustments
7. Robotics
Robotic arms
Automated guided vehicles (AGVs)
Selection Criteria for Electric Actuators
When choosing an electric actuator, consider the following factors:
Load Capacity – Force or torque requirements.
Stroke Length – Distance the actuator needs to move.
Speed – How fast the actuator must operate.
Precision – Required positioning accuracy.
Environmental Conditions – Temperature, humidity, and hazardous areas.
Power Supply – Voltage and current requirements.
Control Interface – Compatibility with PLCs, analog/digital signals.
Duty Cycle – Continuous or intermittent operation.
Future Trends in Electric Actuators
Smart Actuators – Integration with IoT for predictive maintenance.
Energy Recovery Systems – Regenerative braking in actuators.
Miniaturization – Smaller actuators for medical and micro-robotics.
Higher Efficiency Motors – Brushless DC and servo motor advancements.
Wireless Control – Remote operation via Bluetooth or Wi-Fi.
Electric actuators are essential components in modern automation, offering precision, efficiency, and reliability. Their applications span across industries, from manufacturing to healthcare, and advancements in technology continue to expand their capabilities. While they have some limitations, their benefits make them a preferred choice for many motion control applications.
As industries move toward smarter and more sustainable solutions, electric actuators will play an even more critical role in automation and robotics. Understanding their working principles, types, and selection criteria helps engineers and businesses make informed decisions for optimal system performance.
This guide provides a detailed overview of electric actuators, covering their functionality, advantages, applications, and future trends. If you need further details on specific actuator types or applications, feel free to explore additional resources or consult with industry experts.
